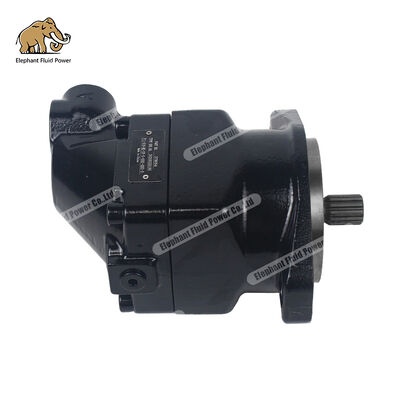

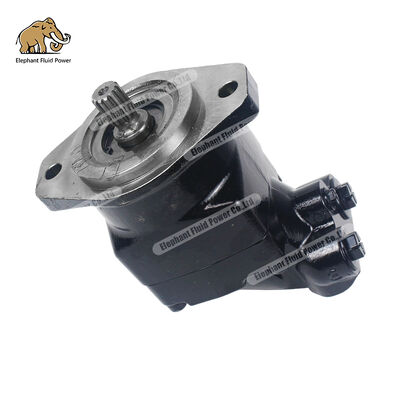

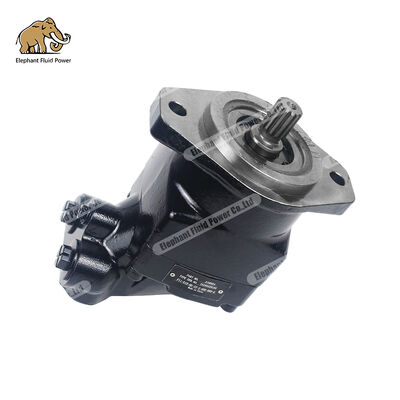

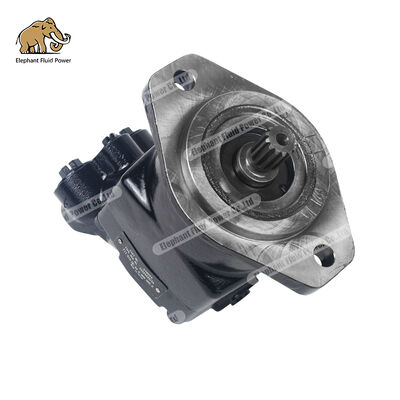

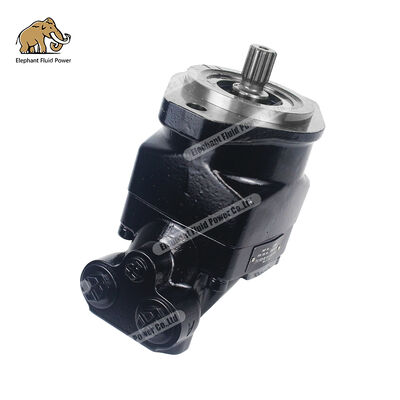

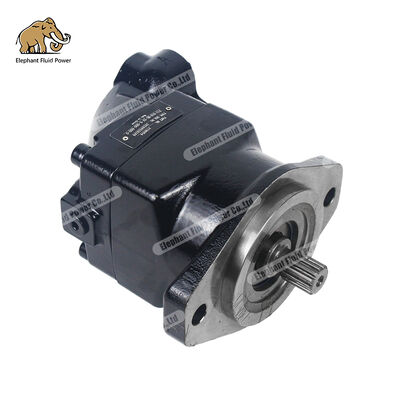

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft

Comentarios de cliente
Calidad muy satisfecha, buena, entrega rápida, ahorrando muchos costes para mi bomba

—— Martin

Wow, es perfecto. Porque no conozco el modelo de la bomba, les proporcioné el tamaño. Me envían los accesorios derechos, y la instalación es totalmente conveniente. Gracias.

—— Filippo

Estoy en línea para chatear ahora

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft
F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft

Ampliación de imagen :  F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Elephant Fluid Power
Certificación: ISO,CE
Número de modelo: PV140 PV180
Pago y Envío Términos:
Cantidad de orden mínima: 1 juego
Precio: Elephant Fluid Power
Detalles de empaquetado: Caja de cartón o madera
Tiempo de entrega: 5-8 días
Condiciones de pago: TT, Paypal, Unión Occidental
Capacidad de la fuente: 500000 juegos por semana

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft

descripción
Material: Hierro Fundido Aplicación: Reparación de la máquina de la construcción
Intercambio: 100% Calidad: Como original
Servicio: Servicio postventa Variedad: Infinidad
Resaltar:

Parker hydraulic piston motor 19 cm3

,

Hydraulic piston motor SAE splined shaft

,

Parker 3707313 hydraulic motor

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft



Elephant Fluid Power provides F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft . Our factory direct sales model ensures competitive pricing, fast lead times, and comprehensive one-year warranty coverage.



Description:

Hydraulic Piston Motor fixed displacement for applications with high demands. Special motor version for high pressure.
Shaft type: Splined SAE type.
Flange type: SAE type with 101.6 mm centering diameter and 2 holes 146.1 mm distance between centers.
Displacement: 19.0 cm3/rev.
Ports A and B: SAE threaded.
Drain port: SAE threaded.
Rotation: Bidirectional.
Max speed: 8100 rpm (intermittent operation: 8900 rpm).
Minimum rotation speed: 50 rpm.
Max working pressure: 350 bar (intermittent operation: 420 bar).
Max oil flow: 154 liters/minute (intermittent operation: 169 liters/minute).
Torque at 100 bar: 30.2 Nm.
Shaft seal material: Type V.
Intermittent working value is allowed for up to maximum of 6 seconds per minute.



F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft 0

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft 1

F11-019 Parker 3707313 Hydraulic Piston Motor 19 Cm3 SAE With Splined Shaft 2


Key Advantages

  • Highest quality warranty with the most favorable pricing
  • Comprehensive product range for diverse applications
  • Secure packaging and expedited delivery options
  • Professional and responsive after-sales support
  • Complete manufacturing capabilities from raw materials to finished products
  • 16 years of hydraulic industry expertise serving clients in 80+ countries
Supported Hydraulic Models
Rexroth: A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
Kawasaki: K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750
KAYABA: MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series
Komatsu: HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650
Libherr: LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140
Toshiba: PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25
Linder: HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50/, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260
Sauer: PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334
Eaton: 3321/3331, 4621/4631, 5421/5431, 78461/78462
Vicker: PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90
Yuken: A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180
Parker: PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100
Hitachi: HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57
Tokiwa: MKV23/33
Uchida: A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172
Nachi: YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34
Hydraulic pump repair parts manufacturing facility Quality control inspection of hydraulic components
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory.
How long is your delivery time?
Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
We cannot offer samples free of charge, but we can supply goods at sample pricing.
What are your payment terms?
Payment ≤ 1000 USD: 100% in advance. Payment ≥ 1000 USD: 30% T/T in advance, balance before shipment.
Our company has extensive experience in repairing various imported and domestic hydraulic components including piston pumps, motors, and reducers. We operate advanced hydraulic pump test benches and employ professional hydraulic system engineers with rich practical maintenance experience. Our products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, and environmental protection machinery. We serve construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, and environmental protection industries. With flexible operations, excellent reputation, reliable service, and proven product quality, we welcome your enquiries and look forward to becoming your trusted partner.
